Profile Extrusion Lines

Extrusion lines for the production of profiles

The long-standing experience in plastic processing allows Bausano to ensure high performance and great reliability over time. Bausano single-screw and twin-screw extrusion lines allow producing rigid and flexible profiles with different weights and dimensions - from a few grams to several kilogrammes/metre, from a few millimetres to more than one metre width.

Features:

To complete our lines, you can find a wide range of Bausano modular accessories:

heads with machine control and fully thermoregulated, both inside and outside.
calibration and cooling benches
take off modules provided with local and remote PLC control
vertical cutter: suitable for profiles up to 300 mm
horizontal cutter: designed for production of wide flat profiles.

Profiles extrusion application

Bausano has specialized in profile extrusion, especially for technical, doors&windows and wpc profiles.

Technical Profiles

Technical profiles extrusion with E-GO single screw extruders

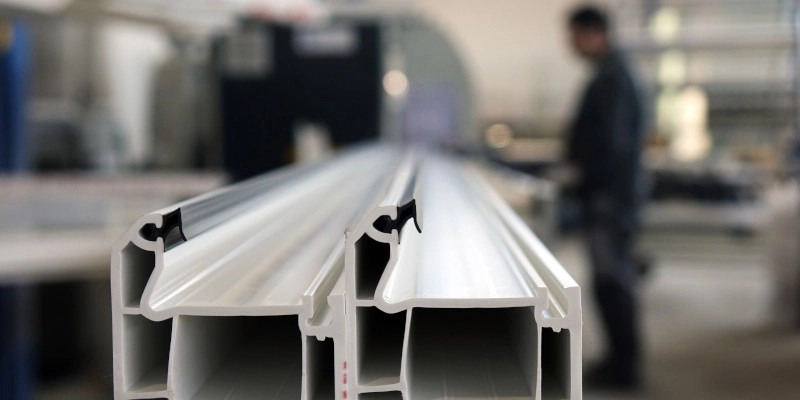

Doors & Windows Profiles

Doors & Windows profiles extrusion with MD Twin Screw Extruders

WPC Profiles

WPC profiles extrusion with E-GO and MD Twin Screw Extruders

Cost-effective
Eliminates tooling part
Production of different shapes, thickness, hardness and color
Wide range of applications
Various product combinations possible

The method of profile extrusion offers an efficient, cost-effective way to produce plastic parts and products. Extrusion is a more efficient way because it eliminates the tooling part. Surely the extrusion of profiles with Bausano’s Single or Twin-screw extruders, gives to the end manufacturer the possibility to be creative and create all sorts of shapes, thickness, hardness, size, color, and texture.
Profile products do not generally have uniform wall thickness, the reason is simply a mechanical need to place material in certain positions to achieve the requirements of the projects. Bausano technical designer aim is to have the right form and material quantity to satisfy the customers’ requirements. The not uniform shape will always be a characteristic of profiles, for examples in window profiles the outer walls will always be thicker than the internal webs that are used to stabilize the profile during the cooling process. Profiles can be more difficult to run because there are no die adjustments, and the different shapes associated with each product require modifying downstream equipment.

Bausano Custom Profile Extrusion

Bausano has studied all challenges of profile extrusion with its E-GO single screw and MD Nextmover Twin-screw series is able to satisfy every customer request. So, the only main disadvantage of profile extrusion is the limitations in the design possibilities, which is due to the linear nature of the process. But there are more advantages than disadvantages, for example it is an inexpensive process and various product combinations are possible.

One of the most important parts of a good profile extrusion is the profile die head design that is made internally in Bausano’s technical department to satisfy the thickness parameters of a good profile and a smooth extrusion of every possible plastic material for profiles.

Materials

Profiles can be produced with any resin/pellet material, but the most common resins/pellets are:

PVC
Polyethylene
Polypropylene
ABS

REQUEST MORE INFORMATION

Applications

Thanks to their reliability, practicality and great resistance over time, the profiles manufactured with our extrusion lines are increasingly in demand for a number of applications:

DOORS AND WINDOWS

Profiles for windows, roller shutters, doors and windowsills;

BUILDINGS

Electric conduits, staff angles, baseboards, chimney weathering and gutters;

FURNITURE & DESIGN

Technical and aesthetic, expanded and co-extruded profiles.

Design

We design our extrusion lines with the same goals every day:

development of solutions that solve the everyday problems of people working in this sector;
efficiency and reduction of energy consumption and production scraps;
enhancing of our systems, ensuring their lasting life cycle;
electronic simplification of machine control panels, to make them easy to use also by unspecialised operators.

Materials

Different materials hold different advantages. ABS, for example, offer exceptional chemical resistance while PS offers good adhesive capabilities.

PVC is the most common type of plastic used for plastic profiles due to its flexibility, allowing it to be used for numerous applications.

The market for profiles is vary and heterogenous, profile extrusion is used to produce gutters, window and doors profiles, and many more. Usually, Builders and construction engineers are the largest users of plastic profiles as they are an essential component of many building products.

Plastic profiles extruded with Bausano technology are available in a wide range of shapes and sizes including shapes such as thin film, rods, wire sheets, trim, channels, rods, tubing and gaskets additional energy saving of up to 50%!
